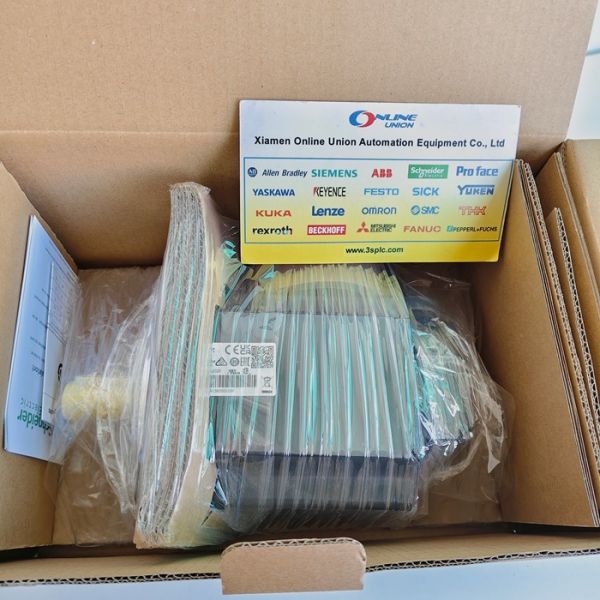

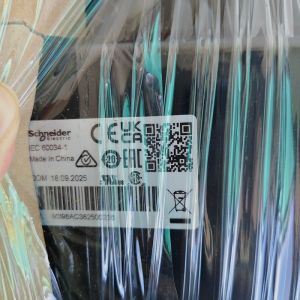

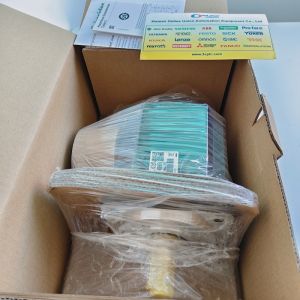

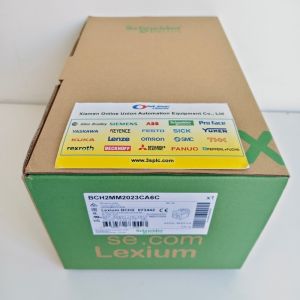

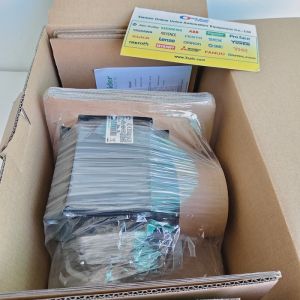

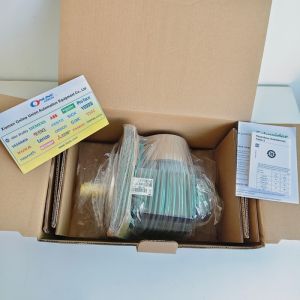

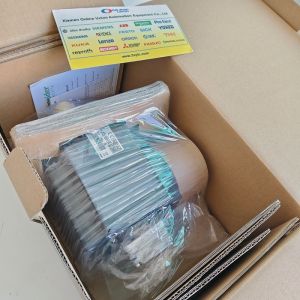

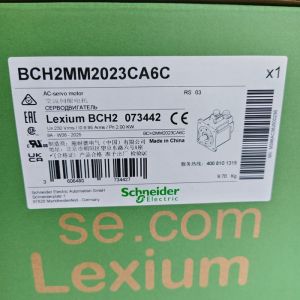

The Schneider Electric BCH2MM2023CA6C is a high-performance AC servo motor from the Lexium 28 series, designed for precision motion control in industrial automation. As a critical component of Schneider’s integrated drive systems, it enables high-accuracy positioning, speed regulation, and torque control—ideal for applications demanding reliable, repeatable performance in harsh environments. This motor is part of Schneider’s modular Lexium 28 ecosystem, compatible with配套 drives (e.g., LXM28 series) for seamless system integration.

Key Features

1. High-Precision Control:
   Optimized for closed-loop vector control (current/speed/position), delivering exceptional accuracy for tasks like CNC machining, robotics, and automated assembly.
2. Compact, Robust Design:
   130mm flange size (5.12in) and 187mm length (7.36in) for space-constrained installations, with IP50 (IM V3) or IP65 (IM B5/IM V1) protection against dust, moisture, and debris.
3. Wide Operating Range:
   Supports 3000rpm speeds and continuous stall torque of 9.55Nm (84.52 lb·in), with a maximum output torque of 28.65Nm (254.5 lb·in) for dynamic load handling.
4. Industrial Durability:
   Operates reliably in temperatures from -20°C to 40°C (-4°F to 104°F) and withstands vibration/shock, making it suitable for factories, warehouses, and process plants.
5. Flexible Integration:
   Equipped with MIL-spec connectors for easy wiring to Schneider Lexium 28 drives (e.g., LXM28AU20M3X) and absolute encoders for precise position feedback.
