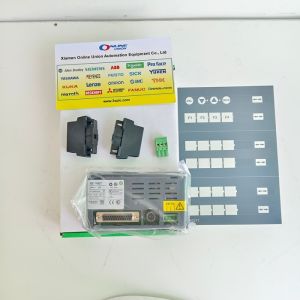

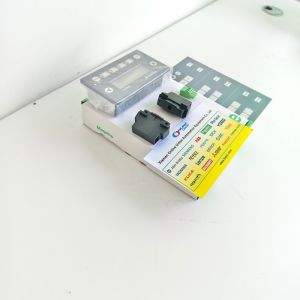

Schneider XBTN401 Small panel with keypad, with matrix screen :

The XBTN401 is a compact LCD HMI (Human-Machine Interface) terminal manufactured by Schneider Electric (formerly Telemecanique). Designed for industrial automation, it provides a cost-effective solution for monitoring and controlling PLC-based systems. The device features a 122x32-pixel monochrome display with three-color backlighting (green, orange, red), enabling visual alerts for different operational states.

Technical Specifications:

Display:

Type: LCD (Matrix)

Resolution: 122x32 pixels

Backlight: 3 colors (green/orange/red)

Viewing Area: 72mm x 20mm

Physical Dimensions:

Length: 119.4mm

Width: 74mm

Depth: 37mm (excluding connectors)

Panel Cutout: 119mm x 63mm

Power Supply:

Voltage: 24V DC (max 24V)

Power Consumption: 5W (typical)

Connection: 3-screw terminal block

Communication:

Ports: 2 ports (RS232C/RS485)

Protocols: Modbus, Uni-Telway

User Interface:

Keys: 8 configurable keys (4 with customizable legends)

Fixed Keys: ESC, ENTER, arrow keys (left/right)

Signal LEDs: 4 LEDs for status indication

Memory & Pages:

Application Pages: 200

Alarm Pages: 256 (25 lines per page)

Real-Time Clock: Accessible via PLC

Environmental:

Operating Temperature: 0°C to 55°C

Storage Temperature: -25°C to 70°C

Humidity: 5% to 95% (non-condensing)

Protection: IP20 (front panel)

Compliance: RoHS-certified

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
