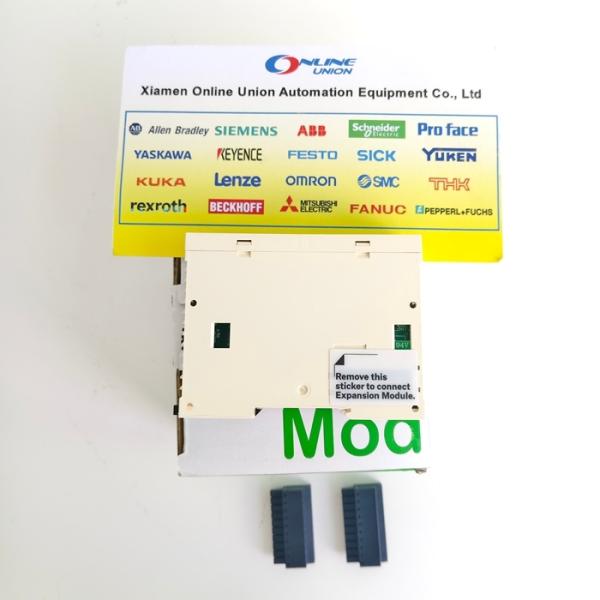

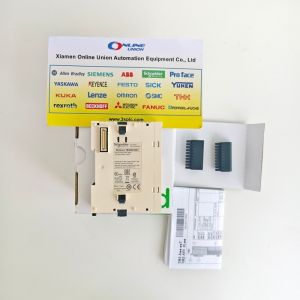

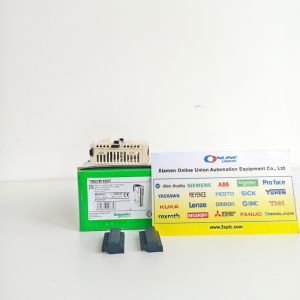

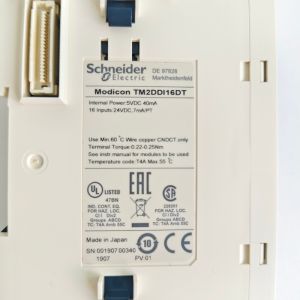

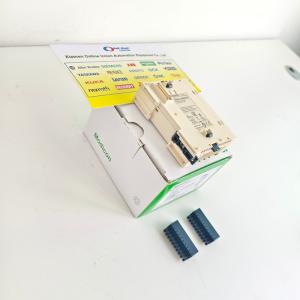

Schneider TM2DDI16DT Discrete input module, Modicon M238 logic controller :

The TM2DDI16DT is a 16-channel discrete input module from Schneider Electric’s Twido series, designed for industrial automation systems requiring high-density digital signal acquisition. This module provides 16 x 24V DC digital inputs, making it ideal for monitoring sensor states, switch positions, and other binary signals in applications such as packaging machinery, conveyor systems, and process control. Its compact dimensions (approx. 84.6mm × 90mm × 27.4mm) and DIN-rail mounting capability ensure easy integration into control cabinets. The module supports 24V DC power input and features a removable screw terminal block for simplified wiring and maintenance.

Technical Specifications:

Input Type: 16 x 24V DC digital inputs (non-isolated).

Input Voltage Range: 19.2–30V DC (typical 24V DC).

Input Current: ~7mA per channel (typical).

Input Response Time:

On-delay: ≤8ms

Off-delay: ≤8ms

Mechanical Characteristics:

Weight: ~200g

Protection Class: IP20 (for standard control cabinet environments).

Environmental Adaptability:

Operating Temperature: 0–50°C

Storage Temperature: -25–70°C

Humidity: 5–95% (non-condensing).

Electrical Connections:

Power Supply: 24V DC (via terminal block).

Signal Input: Removable screw terminals (supporting 0.2–1.5mm² wires).

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
