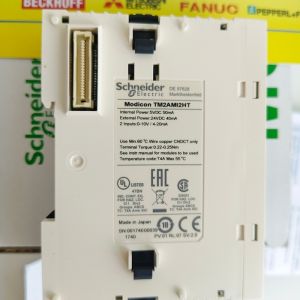

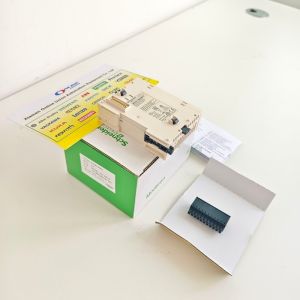

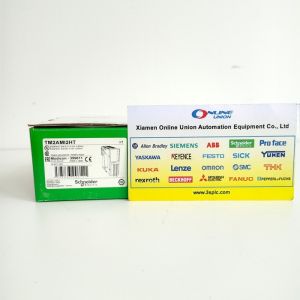

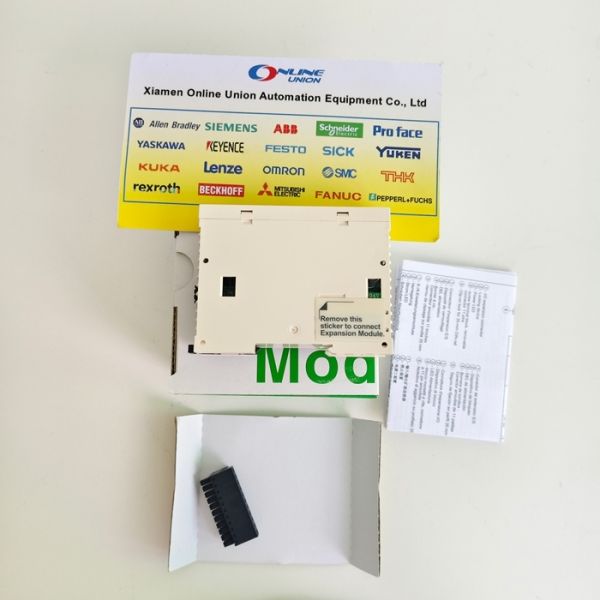

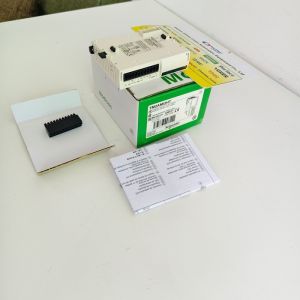

Schneider TM2AMI2HT Analog input module, Modicon M238 logic controller, 2 inputs voltage :

The TM2AMI2HT is a 2-channel analog input module from Schneider Electric’s Twido series, designed for compact and modular PLC systems. It supports high-level analog signals (voltage/current) with non-differential inputs, making it suitable for simple installations and small-scale automation tasks. The module operates at 24 V DC and features a compact design (dimensions: 90 mm × 23.5 mm × 70 mm), enabling space-efficient integration into control cabinets.

Technical Specifications:

Input Channels: 2 analog inputs (voltage/current).

Input Types:

Current: 4–20 mA (non-differential).

Voltage: 0–10 V (non-differential).

Resolution: 12-bit analog-to-digital conversion.

Accuracy: ±0.2% of full scale (at 25°C).

Sampling Rate: 10 ms per channel + 1 controller cycle.

Overload Tolerance:

Voltage: 13 V (continuous).

Current: 40 mA (continuous).

Input Impedance:

Voltage: ≥1 MΩ.

Current: 10 Ω.

Power Supply: 24 V DC (external).

Current Consumption: 40 mA (24 V DC).

Isolation: Optical coupling between channels and internal logic.

Environmental:

Operating Temperature: 0–50°C.

Storage Temperature: -25–70°C.

Compliance: RoHS-certified, REACH-compliant.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
