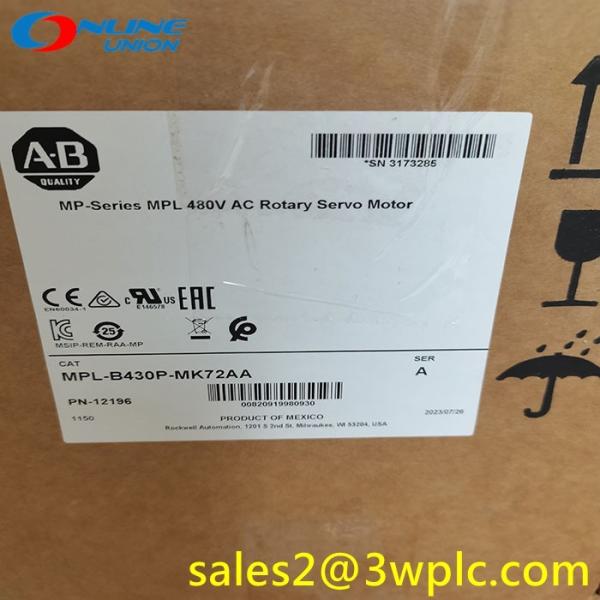

Allen Bradley's MPL-B430P-MK72AA motor is an MP-Series low-inertia servo motor. It is compatible with Kinetix 300, 350, 6000, 6200, and 6500 servo drives. The motor is rated at 460 volts, 5000 RPM, and has a rated output of approximately 2.2 kW; its continuous stall torque is approximately 58 lb/in. However, its peak stall torque is closer to 175 lb/in. In addition, its rotor inertia is approximately 0.0033 lb/in/s2.

The motor has a frame size of "4", which equates to approximately 4.53 inches (or 115 mm). Its magnet track length is "30", which is 3.0 inches (76.2 mm). The unit is rotatable 180 degrees, right angle, and comes with a circular SpeedTec DIN connector. Other key features of the module include: keyless shaft extension, no brakes, high-resolution encoder, and mounting flange consisting of free mounting holes and IEC metric standards.

The MPL-B430P-MK72AA is UL listed and CE marked for all applicable directives. Typical applications include metal forming, machining, web handling, printing, and automotive operations. The motor weighs approximately 12 lbs (5.5 kg).
