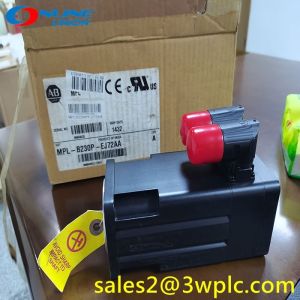

The MPL-B230P-EJ72AA is a brushless asynchronous AC servo motor from the Kinetix MP series. The entire MP series, including the MPL-B230P-EJ72AA, features low inertia and high torque output. It also features intelligent motor technology and onboard memory to save motor information.

The MPL-B230P-EJ72AA has an operating temperature of 0 - 40ºC or 32 - 104ºF. The physical dimensions of the MPL-B230P-EJ72AA conform to the IEC72-1 standard mounting dimensions and are equipped with IEC metric FF-type mounting holes. The entire MP series, including the MPL-B230P-EJ72AA, is UL listed to applicable UL and CSA standards and carries the CE mark to comply with all applicable directives. In addition, the MPL-B230P-EJ72AA has higher acceleration due to the rare earth magnets used in the device design.

The MPL-B230P-EJ72AA has a rated output power of 0.86 kW, a rated continuous stall torque of 2.1 N-m, and a maximum operating speed of 5000 revolutions per minute (rpm). As a feedback device, the servomotor comes pre-installed with a 128-bit sine/cosine absolute single-turn encoder using the Hiperface protocol.
