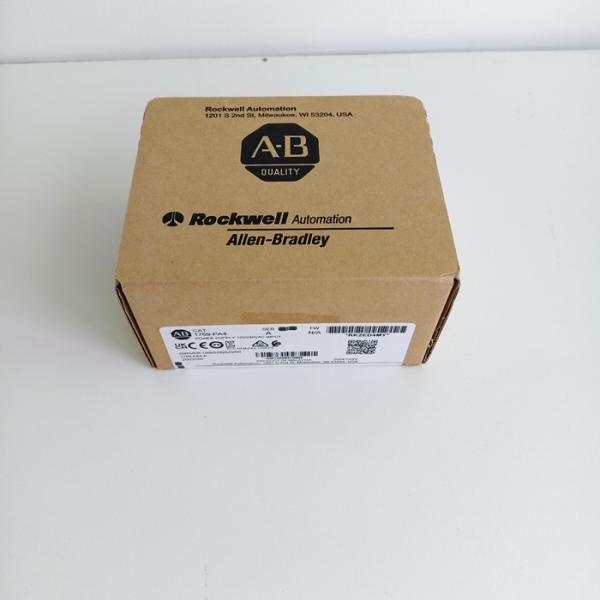

1769-PA4 ALLEN BRADLEY Relay Module
1769-PA4 is an AC power module from the CompactLogix series under
Rockwell Automation. It is a high-performance and highly reliable
industrial grade power supply device designed specifically for
CompactLogix systems, supporting 85 to 265 volt AC input (frequency
47 to 63 Hertz), providing output capabilities of 5 volt DC 4
amperes and 24 volt DC 2 amperes. It also has internal overcurrent
protection and isolation voltage functions, which can effectively
prevent power failures from causing damage to the system; This
module adopts a compact RS Logix 5000 module design, supporting DIN
rail or panel installation. It can connect up to 8 modules on each
side and a total of 16 modules on both sides. It is suitable for
industrial automation, programmable logic control (PLC),
distributed control system (DCS) and other scenarios. It can
provide stable power support for robots, sensors, actuators and
other devices, and achieve distributed control functions through
EtherNet/IP, ControlNet or DeviceNet networks.
Technical specifcations for 1769-PA4
Input voltage range: Supports AC input from 85 to 265 volts, with a
frequency range of 47 to 63 hertz. It has a wide voltage input
range and can adapt to different power environments.
Output voltage and current: The output voltage is 24V DC, with a
current capacity of 4 amperes at 5V DC and 2 amperes at 24V DC.
Power consumption: The power consumption is approximately 200 volt
amperes at 120 volt AC and 240 volt amperes at 240 volt AC.
Module connection capability: Each side can connect up to 8
modules, and one power supply can connect up to 16 modules.
Size and weight: The size is approximately 2.76 x 3.43 x 4.65
inches, and the weight is approximately 500 grams (some data shows
it as 630 grams).
Installation method: Supports DIN rail or panel installation for
easy integration in industrial control cabinets.
Protection function: Built in overcurrent, overvoltage,
undervoltage and other protection functions, protecting the PLC
control system from power failure interference.
Environmental adaptability: The working temperature range is 0 to
60 degrees Celsius, suitable for standard industrial control
environment humidity.
