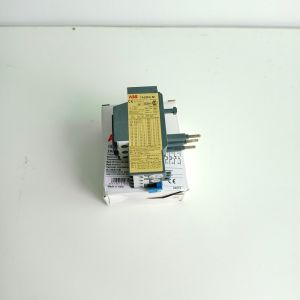

TA25DU-25M ABB Relay Module
TA25DU-25M is a thermal overload relay product of ABB's TA series,
which has the functions of setting current level, free tripping
mechanism, environmental temperature compensation, phase loss
protection and reset test. The rated working current is 25A, the
setting current range is 18-25A, and the tripping level is 10A. It
adopts a combination installation method and is suitable for
AX09~AX25 series contactors. Its working altitude is below 2000
meters and the working environment temperature range is -20 ℃ to+50
℃. The product complies with European and international standards
IEC, VDE, NFC, EN, and the protection level meets EN50274 standard,
which can prevent hand contact. It is suitable for motor protection
scenarios with rated working voltage up to AC690V or DC800V.
Through The current entering the heating element generates heat,
causing deformation of the bimetallic strip, which in turn drives
the action of the connecting rod to achieve overload protection of
the motor.
Technical specifcations for TA25DU-25M
Brand ABB
Model TA25DU-25M
Rated working current 25A
Set current range 18~25A
Release level 10A
Installation method: Combination type, compatible with AX09~AX25
series contactors (also known as compatible with AX09~AX40 AC
contactors)
Working altitude below 2000 meters
Working environment temperature -20 ℃ to+50 ℃ (also known as -20 ℃
to+58 ℃)
Protection level meets EN50274 standard, preventing hand contact
Compliant with European and international standards IEC, VDE, NFC,
EN
Product features include setting current levels, free tripping
mechanism, environmental temperature compensation, phase loss
protection, and reset testing functions
Application scope: Suitable for motor protection with rated
operating voltage up to AC690V or DC800V
